ELEPHONE_BELL_INDICATOR_CIRCUIT

Published:2009/7/14 3:25:00 Author:May | From:SeekIC

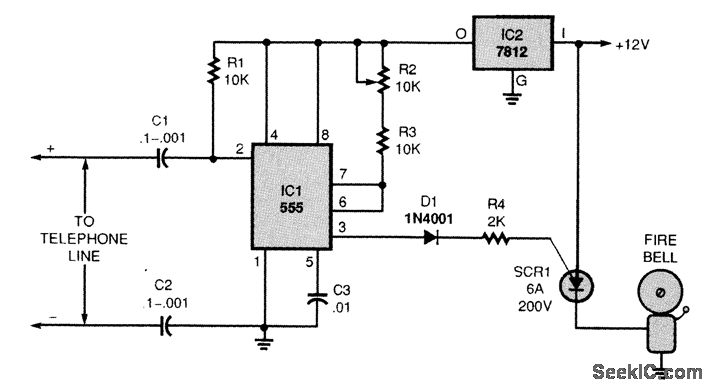

This circuit uses a 555 timer to gate an SCR. The SCR passes 12 V to an alarm bell. The bell should be of the mechanical interrupter type so that it will reset and ring only when ring signals are on the telephone line.
