ECL_INTERFACE_FOR_LED

Published:2009/7/2 20:35:00 Author:May | From:SeekIC

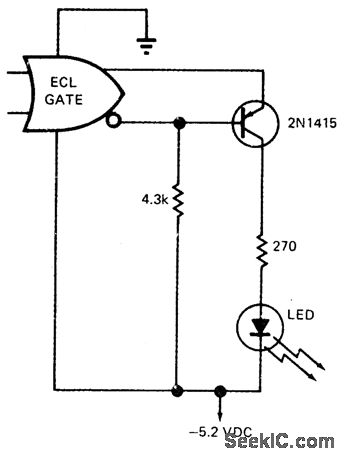

PNP germanium transistor serves as interface for driving LED from emitter-coupled logic. Same interface can be used to drive 7-segment or other arrays that have common-cathode configuration, such as Fairchild FND10 or Monsanto MAN3. Optoisolator can be used in place of LED.-G. A. Altemose, One Transistor Provides ECL to LED lnterface, EDN Magazine, Oct. 15, 1972, p 54,
