Double-key touching lamp switch circuit (4)

Published:2012/7/27 1:18:00 Author:Ecco | Keyword: Double-key , touching lamp , switch | From:SeekIC

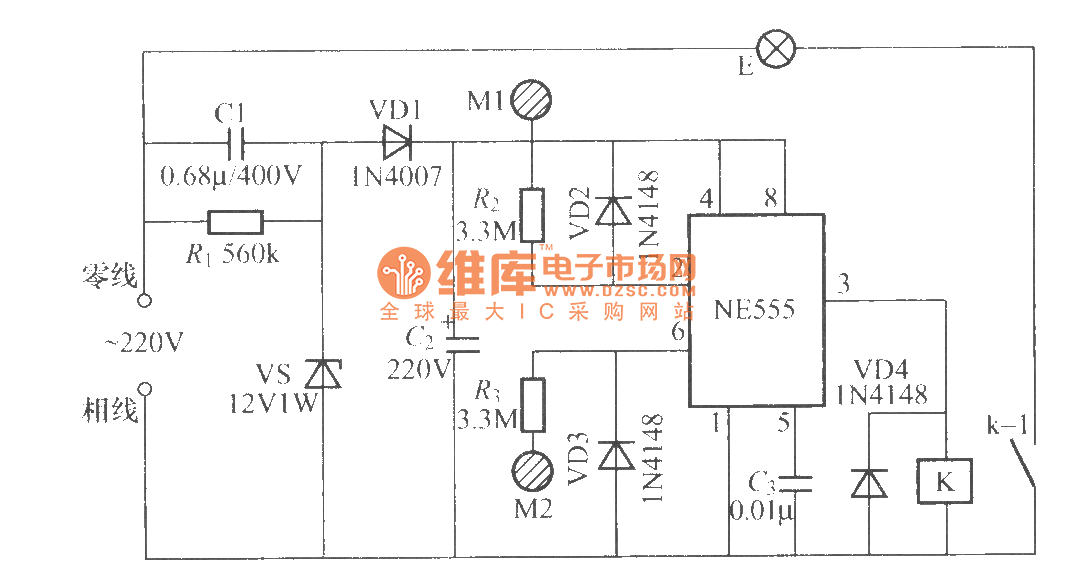

In the figure, K can use JZC- 22F DC12V small medium power electromagnetic relay, and other components have no special requirements.
