DUAL_BATTERU_CAPACITY_INDICATOR

Published:2009/7/14 2:19:00 Author:May | From:SeekIC

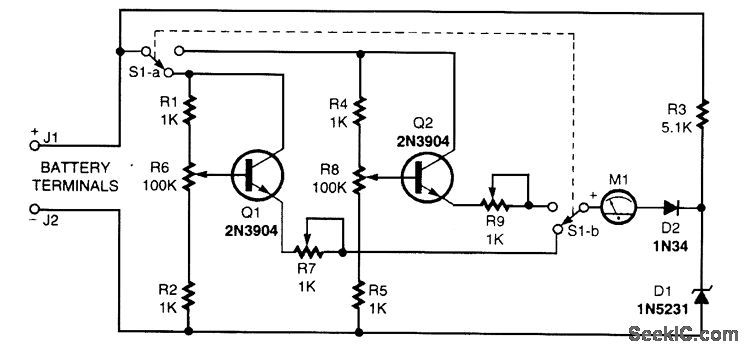

This indicator circuit uses two separate expanded meter scale circuits and can be calibrated for use with two different types of batteries.
