DELAYED_VIDEO_TRIGGER_FOR_SCOPES

Published:2009/6/23 2:49:00 Author:May | From:SeekIC

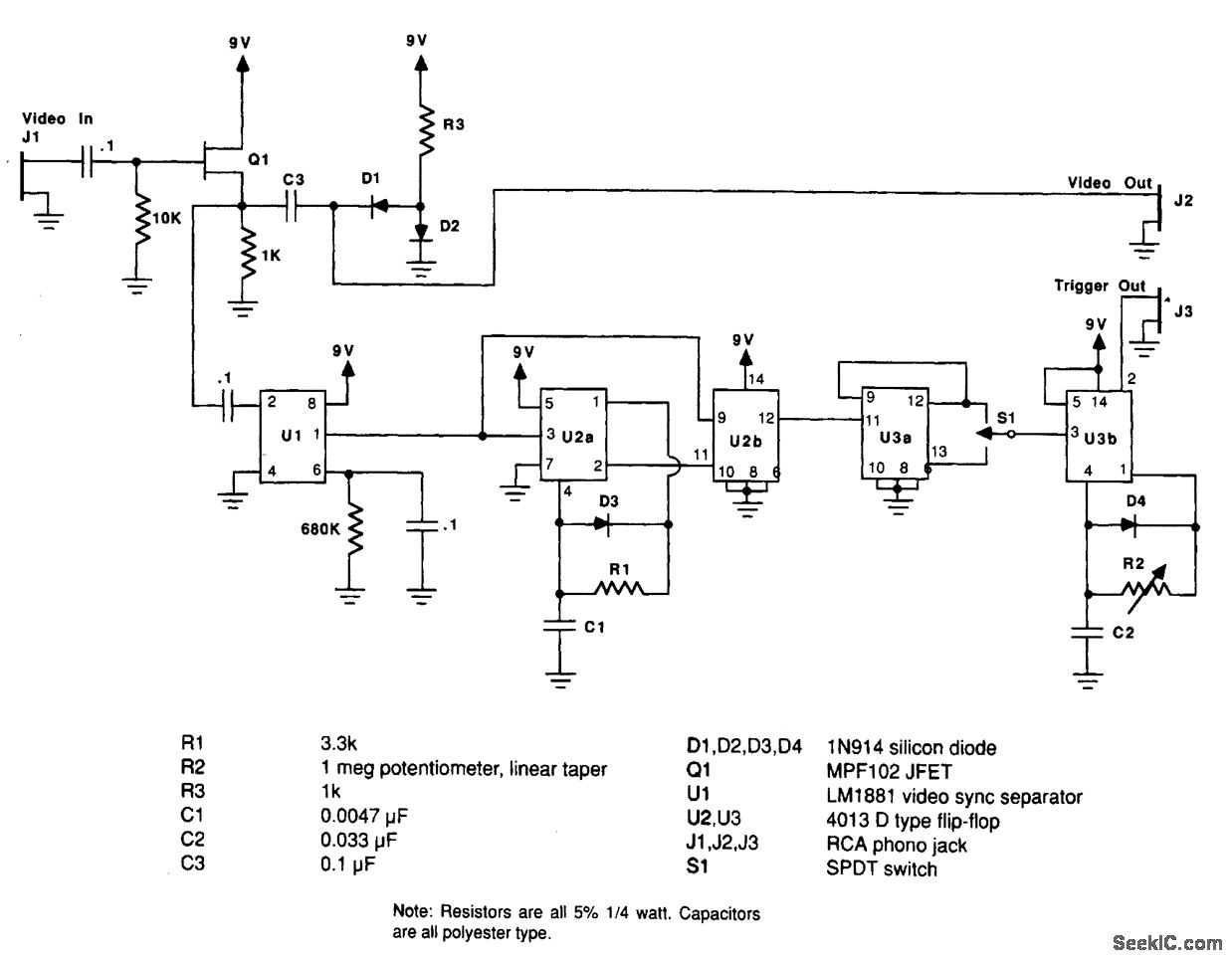

This circuit will extract vertical sync from a video signal, produce a vertical sync pulse, and add an adjustable delay. This permits a delayed sweep effect to enable a scope to look at any particular horizontal line. It is useful for older scopes.
