CAPACITANCE_OPERATED_BATTERY_POWERED_LIGHT

Published:2009/6/24 22:55:00 Author:May | From:SeekIC

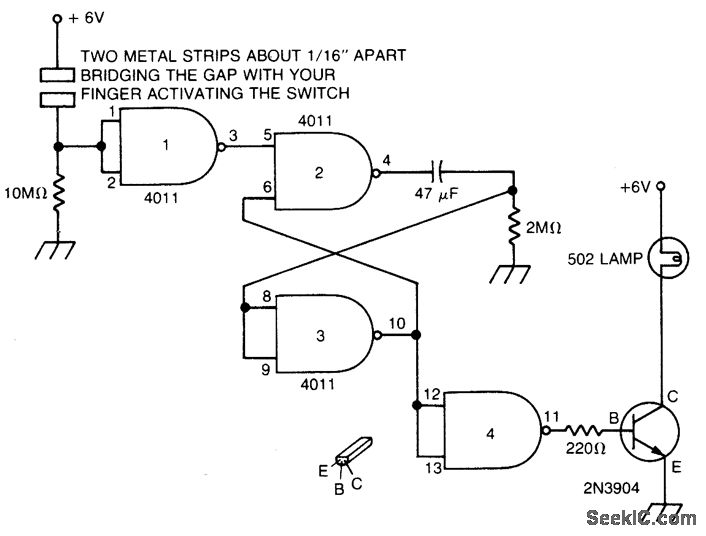

Touch the plate and the light will go on and remain on for a time determined by the time constant of the 47 μF capacitor and the 2M resistor.
