Battery-powered fluorescent lamp circuit (2)

Published:2011/7/20 20:12:00 Author:Ecco | Keyword: Battery-powered, fluorescent lamp | From:SeekIC

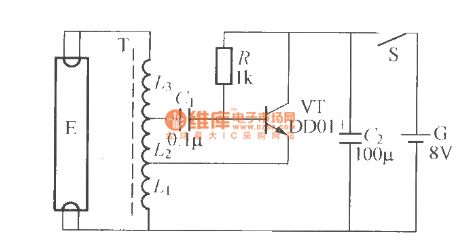

The circuit shown as the chart uses a battery with 8V battery to light 6 ~ 8W fluorescent tube, which can be used in emergency lighting as sudden power outage or flowing palces outdoors . T needs to be made by yourself: it uses E5 ferrite core with Φ0.53 high-intensity polyester, and L1 has 22 turns and L2 has 17 turns around, and L3 switch to uses Φ0.21mm high-intensity polyester enameled wire with 225 turns around, and the head and tail are connected.
