BINARY_NEONS

Published:2009/7/15 21:46:00 Author:Jessie | From:SeekIC

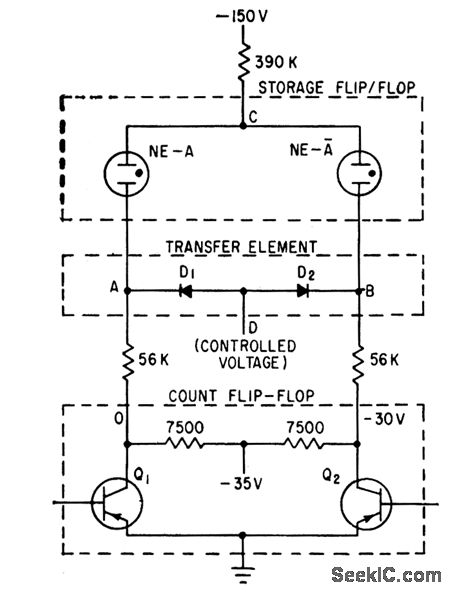

Q1 and Q2 are active elements in transistor binaries, and lamps NE-A are pre-aged neons matched with respect lo firing and running voltages. Voltage at D stores information in neon lamps.-B. H. Harrison, Photoconductive Matrix Simplifies Counter Display, Electronics, 34:51, p 28-30.
