BAR_GRAPH_DISPLAY_CIRCUIT

Published:2009/7/13 4:36:00 Author:May | From:SeekIC

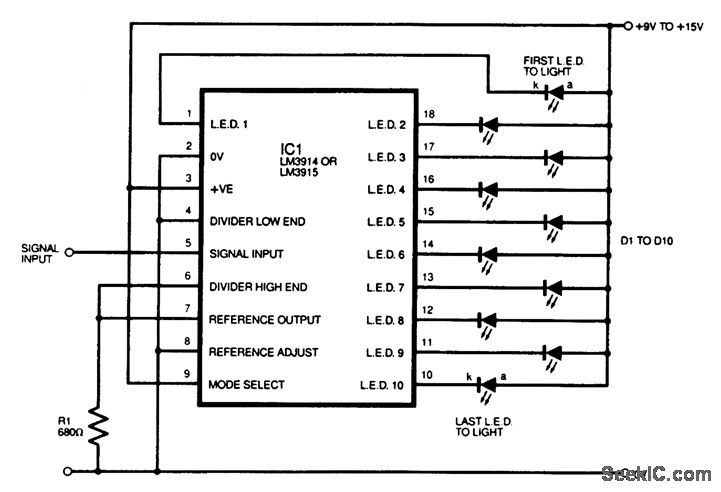

This shows how an LM3914 or LM3915 is connected for 9- to separate LEDs or part of an integral display module.
