A_LITHIUM_BATTERY’S_STATE_OF_CHARGE_INDICATOR

Published:2009/7/3 4:26:00 Author:May | From:SeekIC

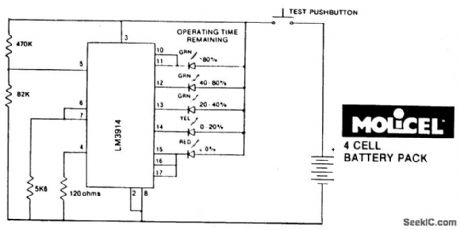

State-ofiCharge indication of a sloping-voltage discharge can be used as a state-of-charge indicator. A typical voltage comparator circuit that gives a visual indication of state-of-charge is shown. Components identified are for a 4-cell input voltage of 9.6 to 5.2 volts.
