AUTO_BREAKDOWN_FLASHER

Published:2009/7/5 23:55:00 Author:May | From:SeekIC

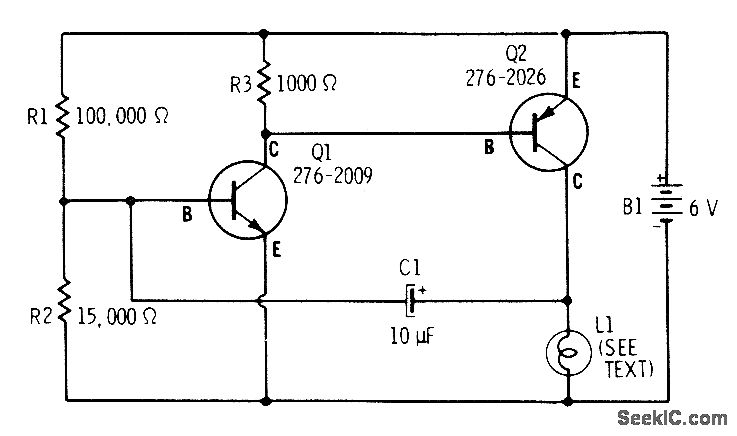

Two-transistor amplifer with regenerative feedback sends 60-ms pulses of currents up to several amperes through low-voltage lamp to give high-brilliance flashes without destroying lamp. L1 can be PR-2 lamp (Radio Shack 272-1120).-F. M.Mims, Transistor Projects, Vol. 1, Radio Shack, Fort Worth, LX, 1977, 2nd Ed., p 27-32.
