Published:2009/6/30 2:50:00 Author:May | From:SeekIC
Circuit Notes

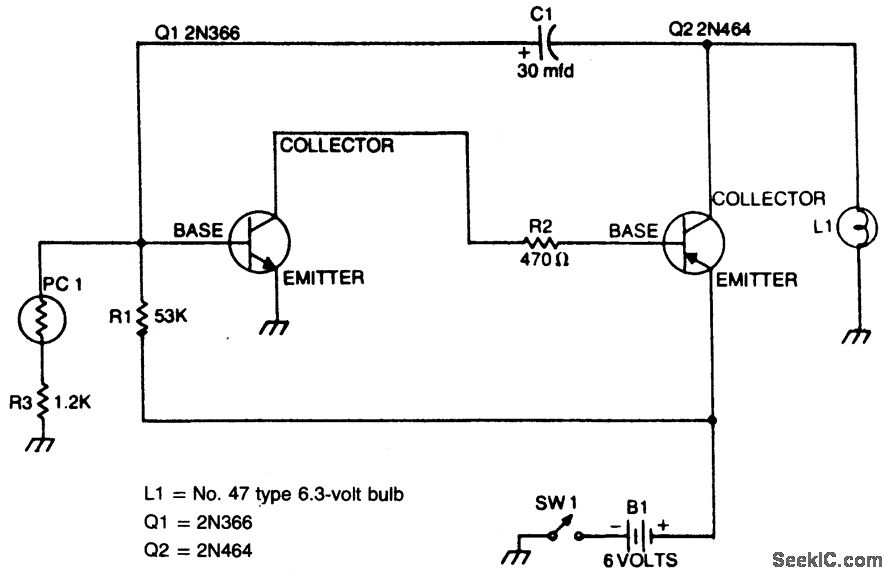

This flasher only comes on at night. It furnishes a bright nighttime illumination, and shuts itself off automatically as soon as the sun comes up. The photocell must be mounted on top of the unit in such a way as to detect the greatest amount of available light.
