AUTOMATIC_NIGHT_LIGHT

Published:2009/6/24 22:34:00 Author:May | From:SeekIC

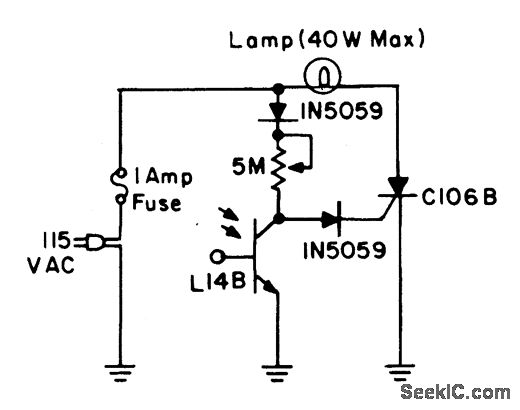

During daylight hours, the L14B photo-Darlington (JEDEC registered as 2N5777 through 2N5780) shunts all gate current to ground. At night, the L14B effectively provides a high resistance, diverting the current into the gate of the C106B and turning on the lamp.
