ALTERNATING_LED_FLASHER_1

Published:2009/7/6 9:02:00 Author:May | From:SeekIC

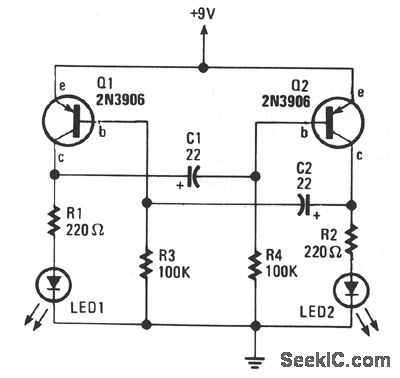

The alternating LED flasher is simply a two-transistor oscillator with LEDs connected to the collector of each transistor, so that they light in time with the circuit's oscillations.
