AGC_FOR_PHOTODETECTOR_AMPLIFIER

Published:2009/7/20 7:33:00 Author:Jessie | From:SeekIC

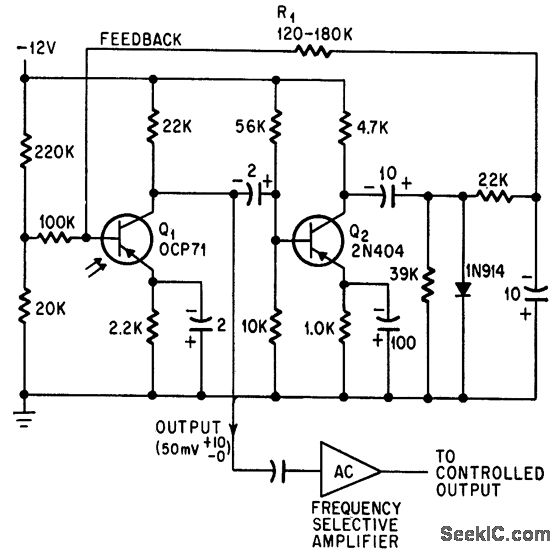

Holds photodetector output signal constant within 2 db for 4-db variation in ambient light level. -P. H. Sydenham, Photodetector Gain Control Aids Signal Discrimination, Electronics, 38:23, p 111.
