AC Line Powered LED Pilot Light

Published:2012/9/6 20:36:00 Author:Ecco | Keyword: AC Line, Powered , LED Pilot, Light | From:SeekIC

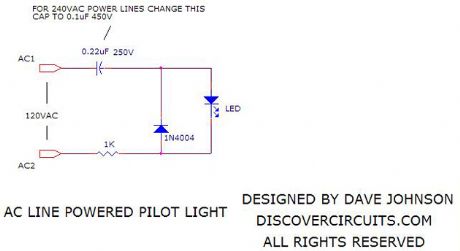

This simple circuit can be used to light a LED indicator lamp, powered from the 120vac line. I have included component values for 240vac lines as well. Source: discovercircuits
