AC_LIGHT_FLASHER

Published:2009/7/13 11:12:00 Author:May | From:SeekIC

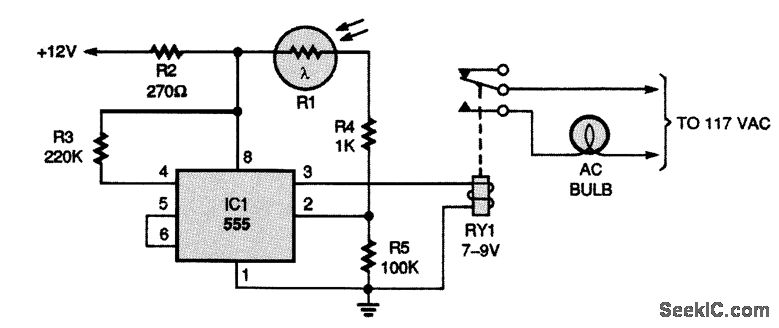

This circuit uses a 555 timer that is configured in an unusual way in that trigger pin 2 is activated by the voltage from a photocell to sense when the lamp is lit. The relay time constants affect the flash rate.
