8 Random Flashing Leds Circuit

Published:2012/10/29 1:39:00 Author:muriel | Keyword: 8 Random, Flashing Leds Circuit | From:SeekIC

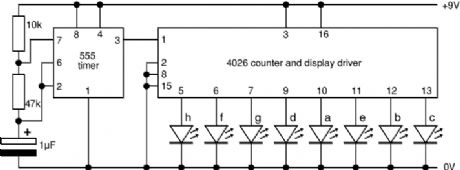

This project flashes eight LEDs in an apparently random manner. It uses a 4060 combined counter and display driver IC which is designed for driving 7-segment LED displays. The sequence is not really random because seven of the LEDs would normally be the display segments, the eighth LED is driven by an output that is normally used for driving further counters. The table below shows the sequence for the LEDs. You can use less than eight LEDs if you wish and the table may help you decide which ones to use for your purpose.
