7_SEGMENT_COMMON_CATHODE_LED_DISPLAY_DRIVER

Published:2009/6/15 23:40:00 Author:May | From:SeekIC

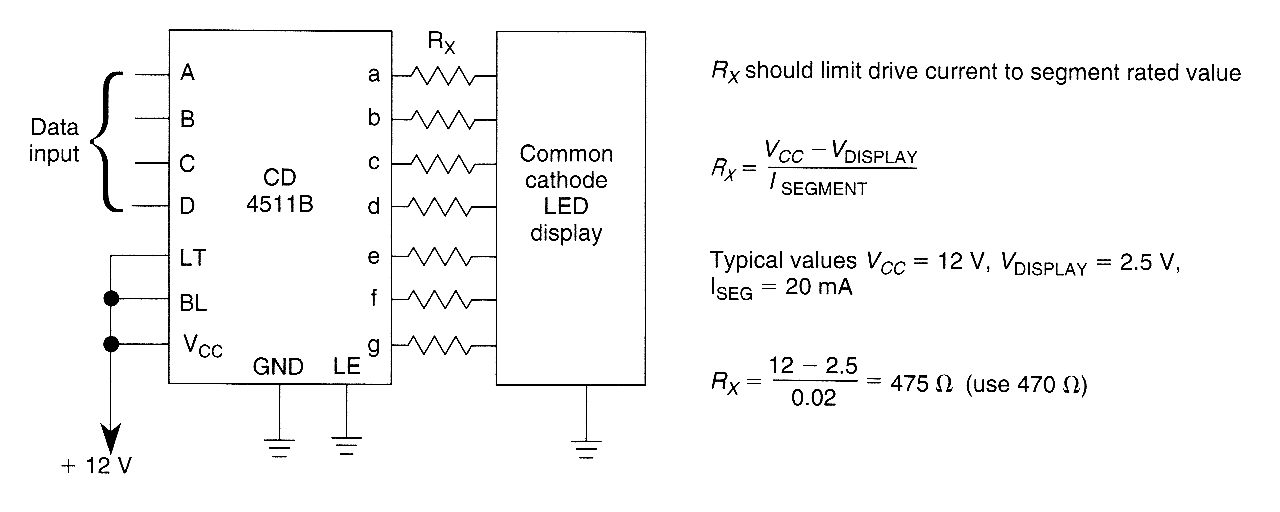

A CD4511B CMOS LED display driver can be used to drive a common cathode LED display. Cur-rent limiting resistors limit the segment current to the rated value at maximum supply voltage. A sample calculation is shown.
