7_SEGMENTLEDDISPLAY_DRIVER

Published:2009/6/15 23:41:00 Author:May | From:SeekIC

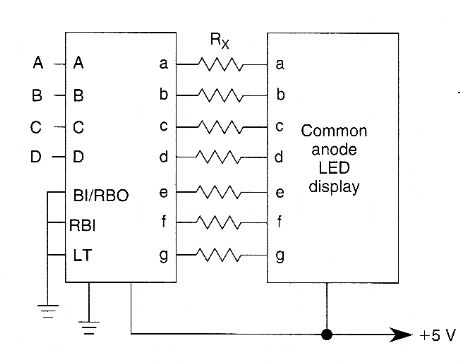

AIL IC1 like a 7447 drives a 7-segment commoll anode LED display．Current limiting reslstor R should limit the segment current to the rated value at maxlmum supply voltage A sample calculation is shown
