6_DIGIT_DISPLAY

Published:2009/7/1 2:41:00 Author:May | From:SeekIC

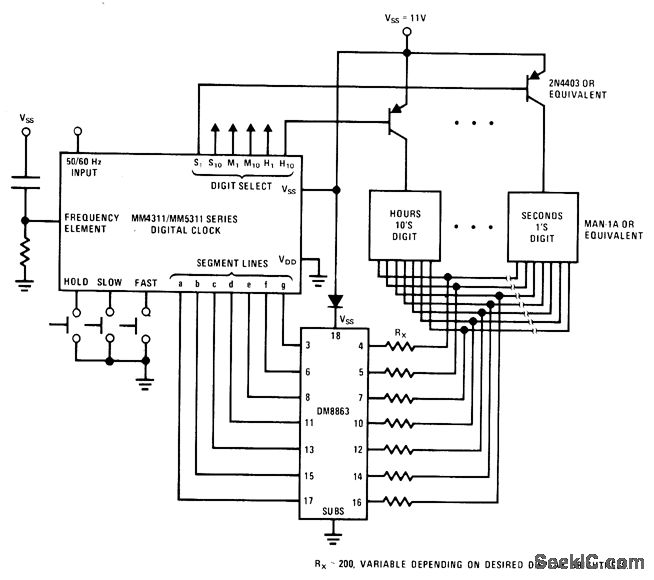

National DM8863 8-digit LED drivel serves as segment dlver for common-anode display of hours,minutes,and seconds,replacing total of 14 resistors and 7 transistors．－C. Carinalli, Driving 7-Segment LED Displays with National Semiconductor Circults, National Semiconductor, Santa Clara,CA,1974,AN-99,p 11.
