4_DIGIT_GAS_DISPLAY

Published:2009/7/1 3:55:00 Author:May | From:SeekIC

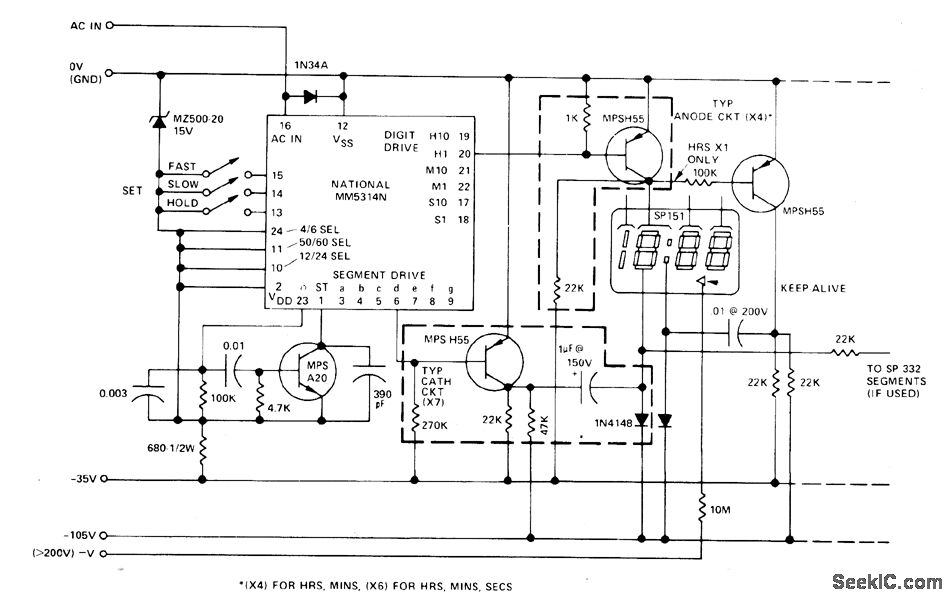

CMOS clock IC drives multidigit gas-discharge display, Simple circuit does not include alarm, flashing colon, and AM/ PM features. Seven segment-driver circuits and four digit-driver circuits are required, although only one of each is shown. Additional drivers are needed if seconds display is desired. Required supply voltages can be obtained from transformer-type supply driving diode bridge;regulation is not needed.-M.S.Robbins, Electronic Clocks and Watches, Howard W.Sans,Indianapolis,IN,1975,p 68-71.
