3_volt_ministrobe_using_an_LM3909_chip

Published:2009/7/19 23:40:00 Author:Jessie | From:SeekIC

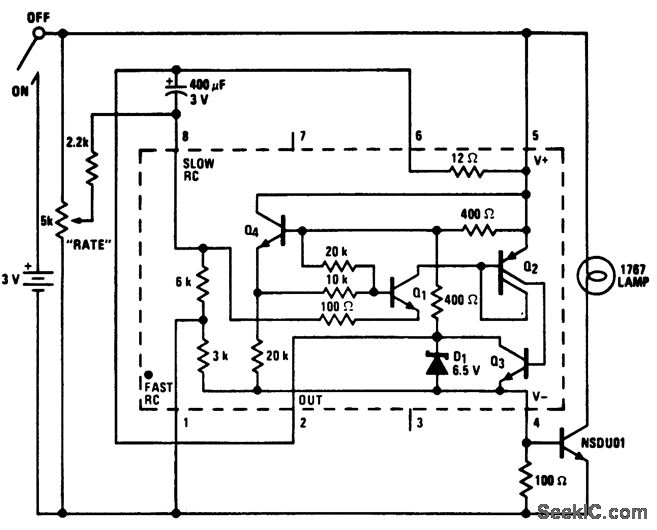

3-volt ministrobe using an LM3909 chip. Circuitry inside dashes is the LM3909. Flash rate can be varied from no flash to continuously on (courtesy National Semiconductor Corporation).
