15_volt_LED_flasher_using_an_LM3909

Published:2009/7/19 23:41:00 Author:Jessie | From:SeekIC

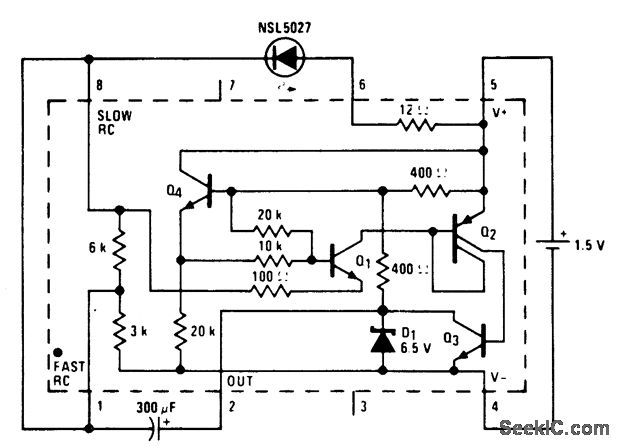

1.5-volt LED flasher using an LM3909. Flashing rate is about 1 hertz. Circuitry inside dashed lines is the LM3909 (courtesy National Semiconductor Corporation).
