12_V_LED_FLASHER

Published:2009/7/13 11:26:00 Author:May | From:SeekIC

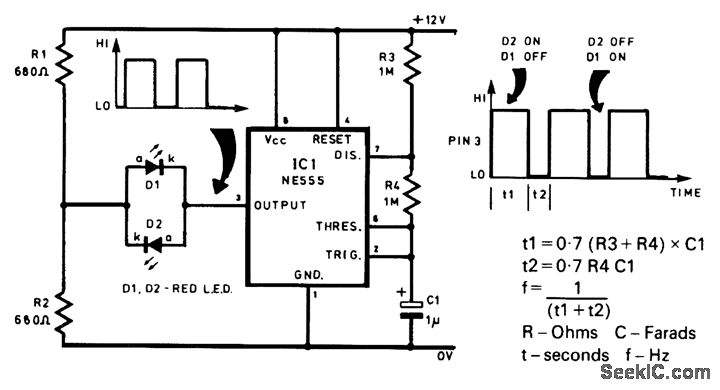

This is the circuit diagram of an LED flasher suitable for 12-V operation. The liming formulas are also shown.
