10, 8 And 6 Step LED Circuits

Published:2013/6/13 21:24:00 Author:muriel | Keyword: 10, 8 And 6 Step , LED Circuits | From:SeekIC

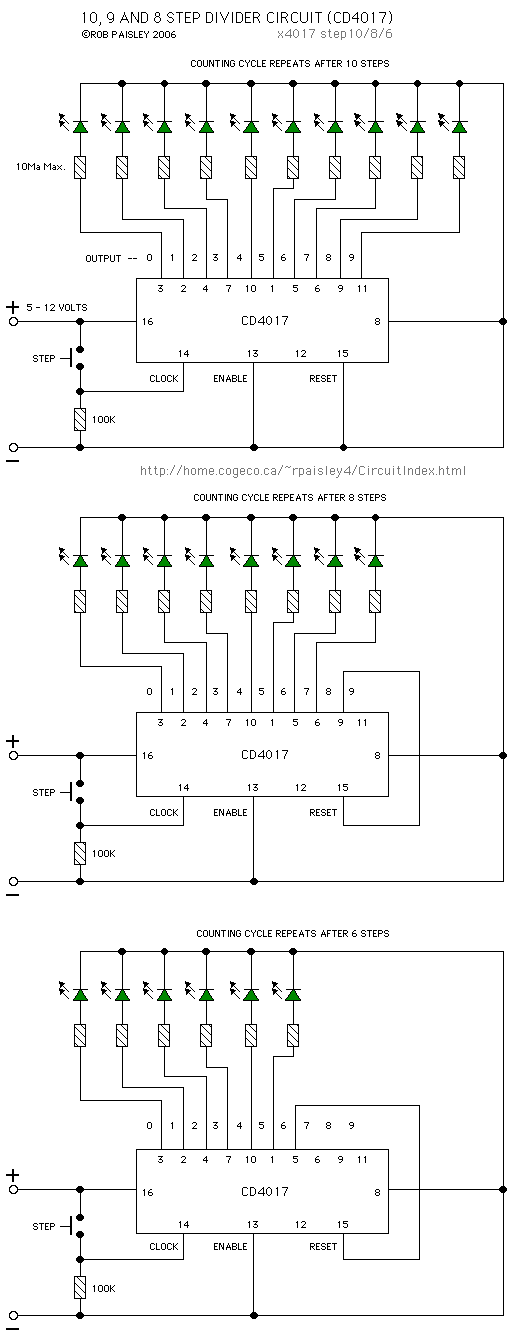

Each time switch S1 is closed the count on the CD4017 advances by 1 step and the coresponding LED turns on. When the maximium count plus 1 is reached for each circuit the cycle is restarted and repeats.
