Y977A/B thunderbolt flash integrated module circuit

Published:2011/11/3 22:20:00 Author:May | Keyword: thunderbolt flash integrated module | From:SeekIC

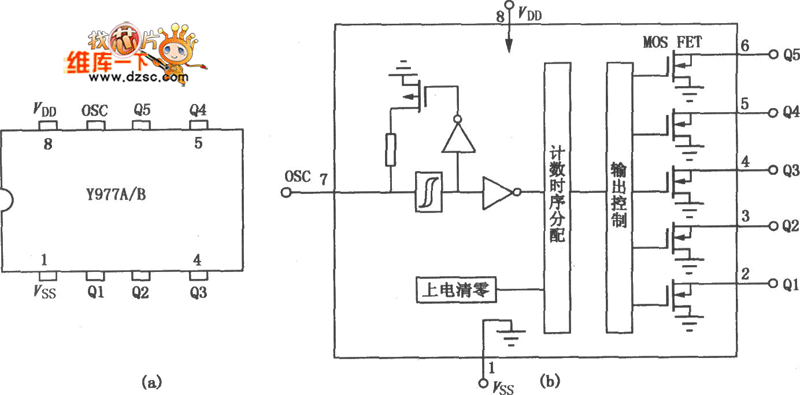

Y977A/B module can be applied to various household appliances forelectronic flashing control, such as tape recorders, audio flash show etc, it also can be used in theaters, discos and flash control store ornamental, electronic toys flashing and motorcycle trunk flashing control etc. The diagramshows its pin arrangement.
