WATER_DEPTH_TELEMETER

Published:2009/7/23 22:26:00 Author:Jessie | From:SeekIC

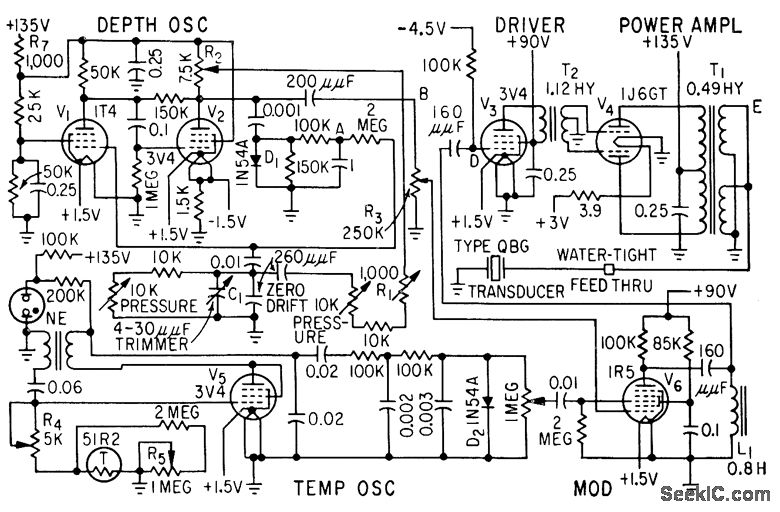

Determines exact depth of trawl net under water, for interception of desired school of fish. Continuous depth information is transmitted to trawler by modulated 21-kc ultrasonic beam, along with water temperature.-F. H. Stephens, Jr., Underwater Telemeter for Trawl Fishing, Electronics, 32:13, p 66-68.
