Video_pulse_amplifier

Published:2009/7/23 20:59:00 Author:Jessie | From:SeekIC

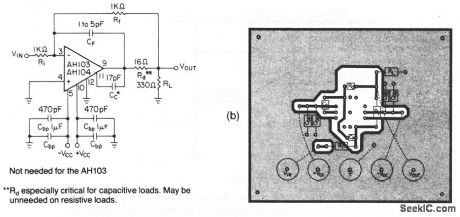

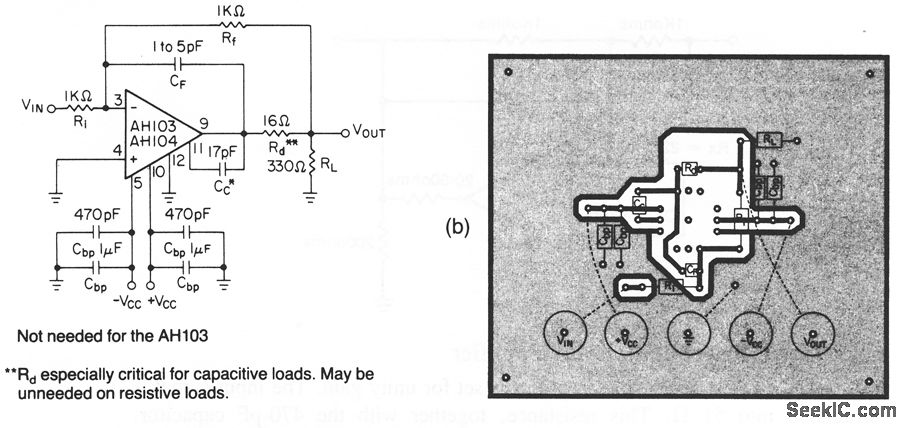

This circuit shows a video pulse amplifier that uses the basic circuit of Fig. 3-44. Figure 3-45B shows a suggested PC layout. Notice that internal current-limiting resistors provide short-circuit protection to the common line, with a limit of 100-mA maximum. A short to either supply line can destroy the unit.Typical supply voltages are± 20 V.
