Video_power_and_channel_select_on_a_single_coax

Published:2009/7/22 22:34:00 Author:Jessie | From:SeekIC

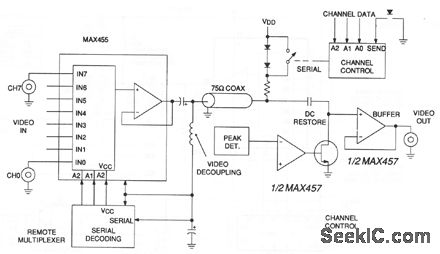

In this video system, a single coaxial cable carries power to the remote location, selects one of eight video channels, and returns the selected signal. The system can choose one of several remote surveillance-camera signals, for example, and display the picture on a monitor near the channel-select box. Circuit details are shown in Figs. 3-15 and 3-16.
