Video_coaxial_line_driver

Published:2009/7/23 20:34:00 Author:Jessie | From:SeekIC

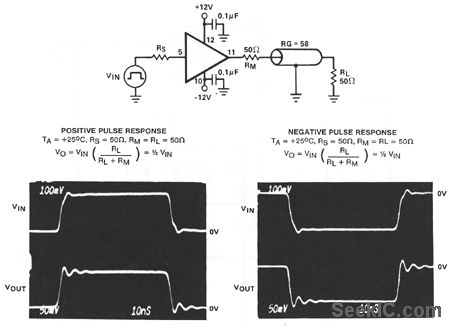

This circuit uses an HA-5033 video buffer as a coax line driver. Notice that both the positive and negative pulse-response waveforms are also shown. The connections given are for the TO-8 metal-can version of the HA-5033.
