VIDEO_SELECTOR

Published:2009/7/11 5:22:00 Author:May | From:SeekIC

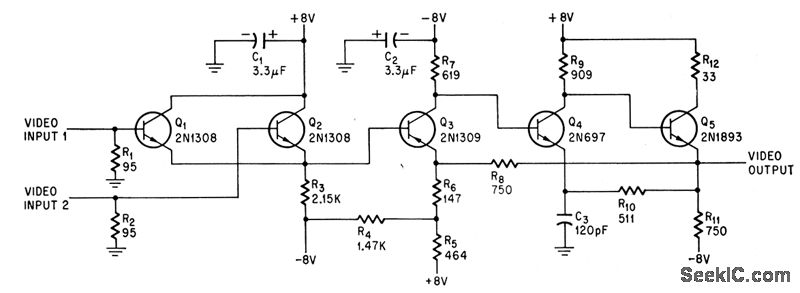

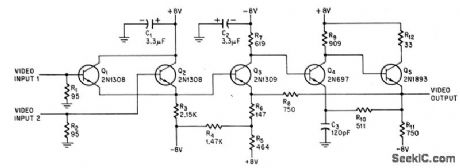

Selects largest of several positive-going video signals as positive-going output to 95-ohm load. Circuit gain is about 3 db.-A. E. Popodi, Reliable Repertoire of Display Circuits Electronics.38:2,p60-66
