VIDEO_PREAMP

Published:2009/7/23 23:32:00 Author:Jessie | From:SeekIC

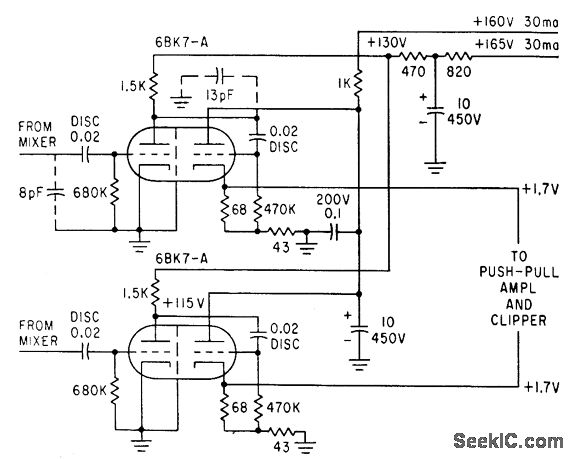

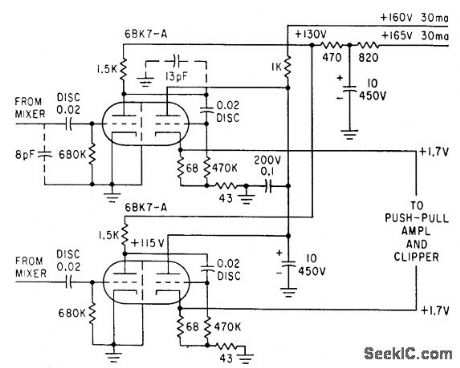

Accepts output of balanced mixer of microwave interferometer system. Bandwidth is 3 Mc.-H. L. Bunn, Determining Electron Density and Distribution in Plasmas, Electronics, 34:14, p 71-75.
