VERTICAL_LOCATOR_FOR_CHARACTER_READER

Published:2009/7/23 23:03:00 Author:Jessie | From:SeekIC

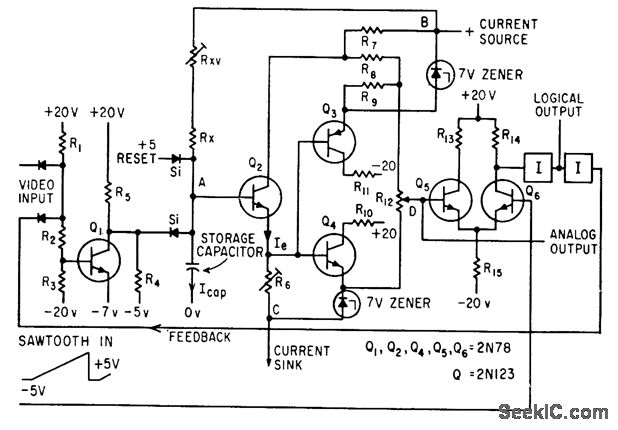

Sawtooth input is compared with earliest video of each vertical sweep of typed character being scanned, to charge capacitor and derive logical output related to bottom of typed line.-J. Bauldreay and E. Milbradt, Solving Registration Problems in Optical Character Recognition, Electronics, 35:1, p 77-81.
