UJT_INTERVAL_TIMER

Published:2009/7/23 22:30:00 Author:Jessie | From:SeekIC

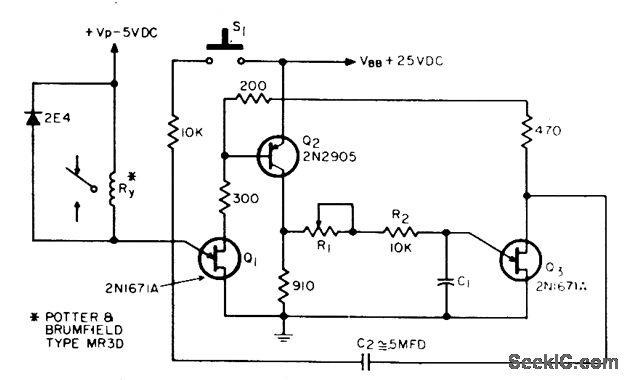

Inexpensive relay provides excellent timing accuracy and high isolation in circuit using power gain of emitter junction of ujt Q1. Timing is determined by R1, R2, and C1.-N. H. Kadivnik, Interval Timer, EEE, 12:5, p 75.
