TELEPHONE_TONE_RINGER

Published:2009/6/25 22:02:00 Author:May | From:SeekIC

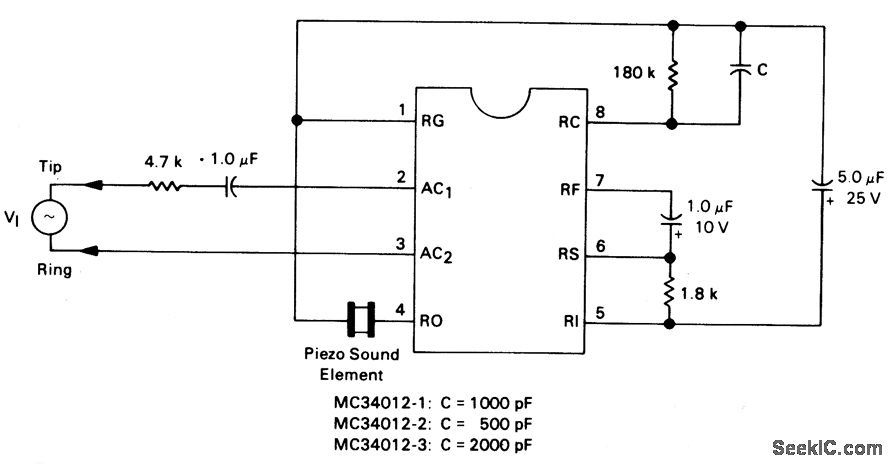

This is a complete telephone bell replacement circuit with minimum external components with on-chip diode bridge and transient protection and direct drive for piezoelectric transducers.
