TELEPHONE_TAP

Published:2009/7/7 22:55:00 Author:May | From:SeekIC

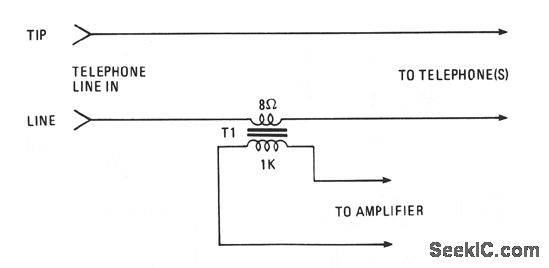

Amplify or record a telephone call with the simple circuit shown. The 8-Ω secondary winding of a min-iature transistor output transformer is connected in series with either of the telephone lines. The 1000-Ω primary winding can feed either a cassette recorder or an audio amplifier.
