TV_video_signal_processor_circuit

Published:2009/7/21 5:27:00 Author:Jessie | From:SeekIC

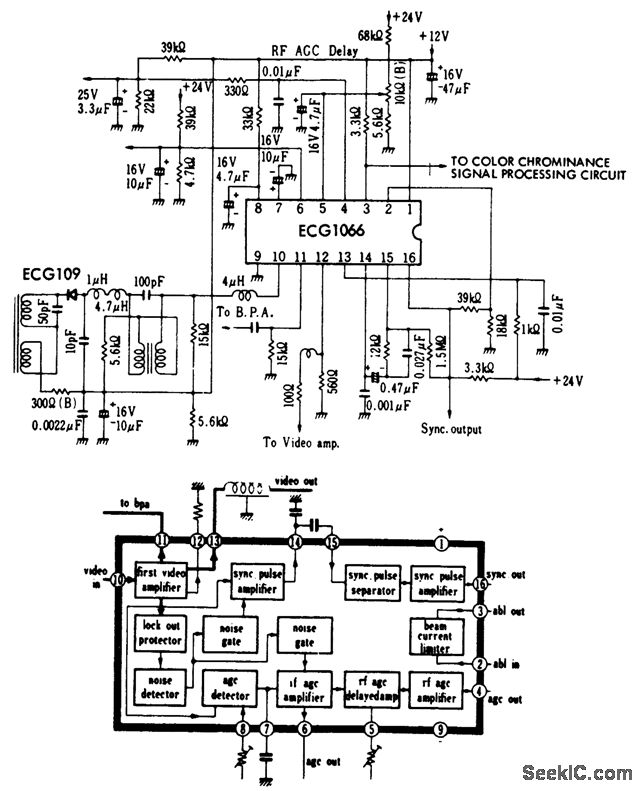

TV video signal processor circuit. The ECG1066 is a 16-pin DIP (courtesy GTE Sylvania Incorporated).
