TV_low_level_video_detector

Published:2009/7/21 5:18:00 Author:Jessie | From:SeekIC

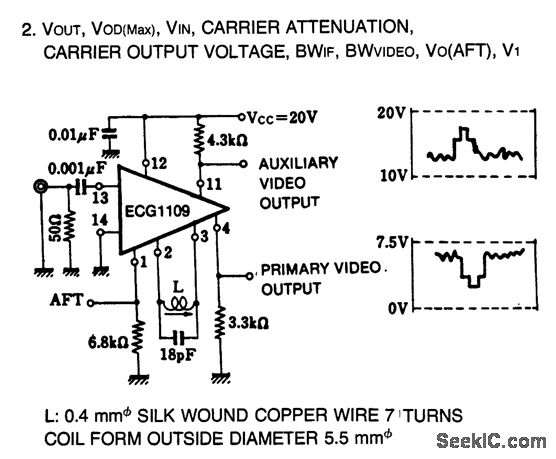

TV low-level video detector. Typical voltage output is 7.5 volts peak to peak. The 14-pin DIP contains a double balanced detector circuit (courtesy GTE Sylvania Incorporated).
