TV Transmitter

Published:2012/11/15 20:48:00 Author:muriel | Keyword: TV, Transmitter | From:SeekIC

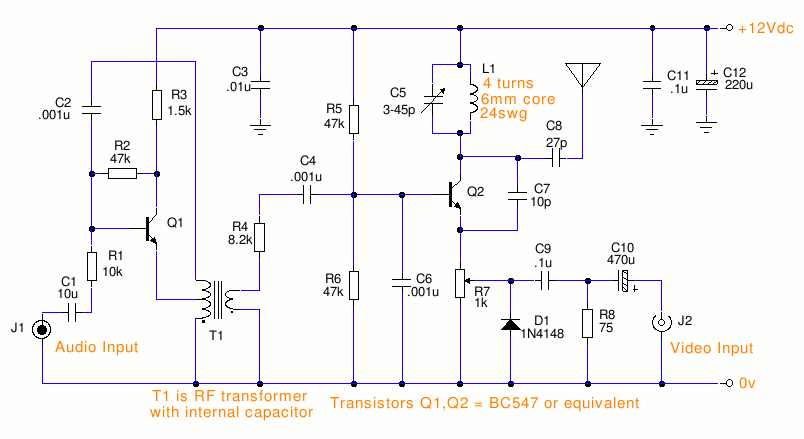

A VHF band TV transmitter using negative sound modulation and PAL video modulation. This is suitable for countries using TV systems B and G.
