TMPA8807PSN Multi-Function Super Monolithic Circuit Diagram

Published:2011/7/3 2:38:00 Author:Vicky | Keyword: Multi-Function, Super Monolithic | From:SeekIC

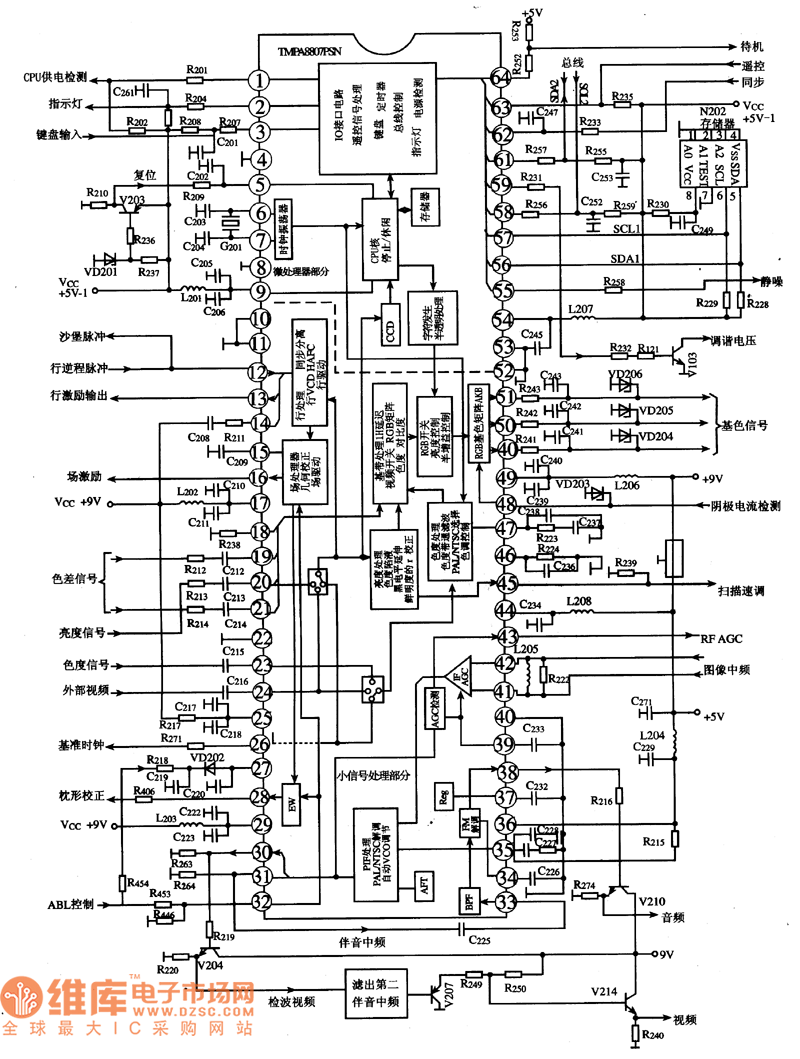

Internal Block Circuit Diagram and Typical Applied Circuit TMPA8807PSN is a television multi-function super-monolithic integrated circuit produced by Toshiba Corporation. It is widely used in large-screen color television set of Kongka series, TCL series, Haier series, Toshiba series, Hisense Serires, and Changhong series etc. 1 functions and features IC TMPA8807PSN includes microprocessor, television small-signal processing circuit, teletext decoder circuit and some other accessory functional circuit. 2 functions and datum of pins ICPA8807PSN uses 64 pins which are in dual-in-line package. It is available in PAL, NTSC and SECAM. 3 typical applied circuit The internal block circuit diagram and typical applied circuit is shown in the above picture.
