Stereo TV decoder

Published:2012/10/11 2:36:00 Author:muriel | Keyword: Stereo TV, decoder | From:SeekIC

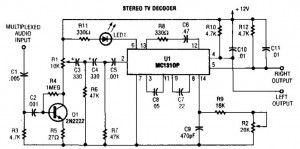

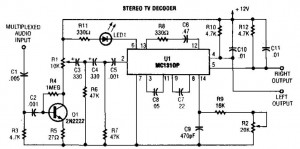

A simple stereo tv decoder circuit build with MC1310P. Transistor Q1 is an audio amplifier and U1 is used as a 31.5KHz subcarrier which is similar to 38KHz FM MPX. Pilot frequency is 15.734KHz. Stereo tv decoder schematic
