TTL_infrared_LED_fiberoptic_driver

Published:2009/7/22 4:28:00 Author:Jessie | From:SeekIC

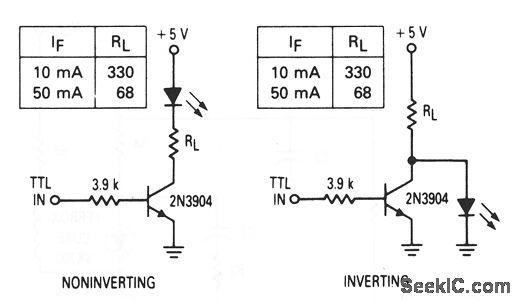

These circuits show an infrared LED (MFOE3200, 3201, 3202) that is used as fiberoptic drivers for both noninverting and inverting TTL inputs.
