TTL_Photodetector_fiberoptic_receiver

Published:2009/7/22 4:30:00 Author:Jessie | From:SeekIC

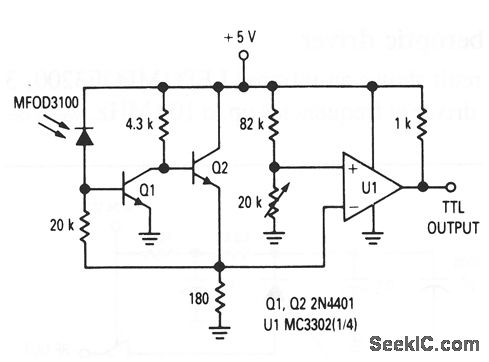

This circuit shows a photo detector (MFOD3100) that is used as a fiberoptic receiver with a TTL output, operating at frequencies up to 1 MHz.
