TRIPLE_INPUT_VIDEO_MIXER

Published:2009/7/23 23:11:00 Author:Jessie | From:SeekIC

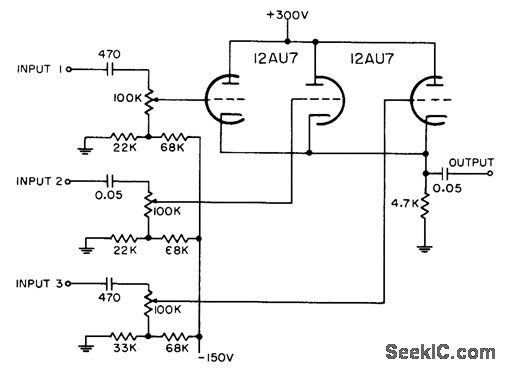

Each grid is biased to cutoff, so mixer accepts only positive-polarity pulses having sufficient amplitude to overcome this bias.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-2.
