TRANSISTORS_SIMULATE_PHANTASTRON

Published:2009/7/24 3:34:00 Author:Jessie | From:SeekIC

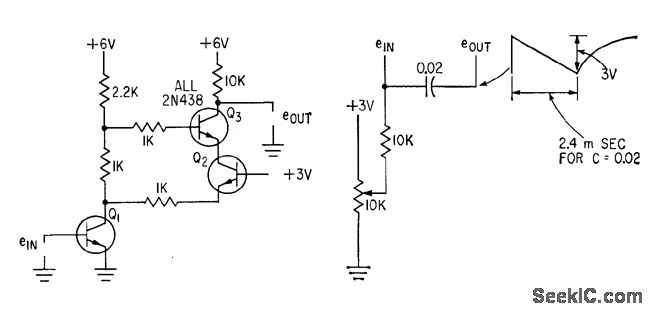

Three transistors simulate current-partitioning action of pentode vacuum-tube phantastron sawtooth sweep generator. Potentiometer in bias and feedback circuit can be adjosted for either triggered or free-running phantastron sweep.-N. C. Hekimian, Phantastron Circuits Using Transistors, Electronics, 34:8, p 46-47.
