TRANSDUCER_SCANNER_WITH_INDICATORS

Published:2009/7/23 23:12:00 Author:Jessie | From:SeekIC

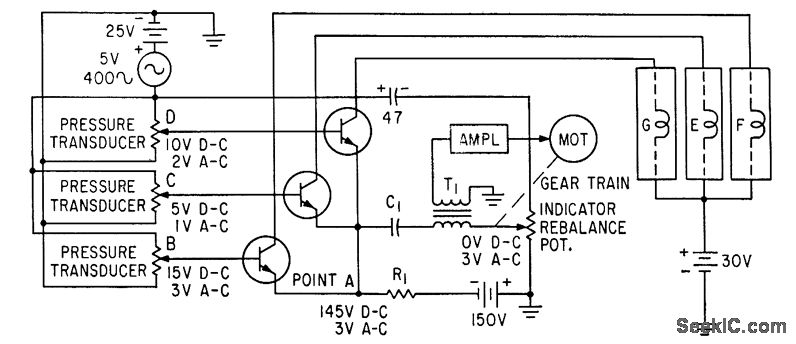

Transducers monitored in parallel mode actuate a-c servo when any one goes beyond predetermined range. Transistor then turns on lamp to identify transducer whose output has actuated the servo.-S. Thaler, Solid-Slate Parallel-Mode Scanner Reads System Physical Parameters, Electronics, 34:19, p 78-80.
