THREE_TRANSISTOR_PHANTASTRON

Published:2009/7/24 3:46:00 Author:Jessie | From:SeekIC

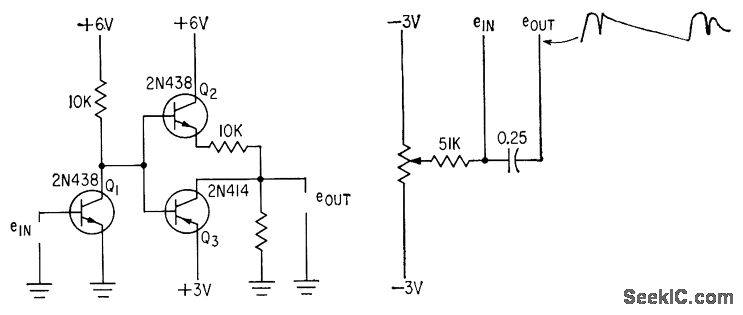

Use of both pnp and npn transistors gives desired current partition, while feedback required for sweep generator is provided by potentiometer arrangement at right.-N. C. Hekimian, Phantastron Circuits Using Transistors, Electronics, 34:8, p 46-47.
