THREE_INPUT_TWO_OUTPUT_MIXER

Published:2009/7/23 23:23:00 Author:Jessie | From:SeekIC

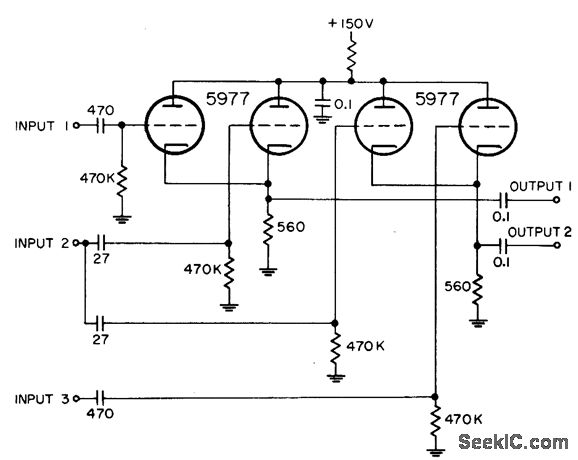

Uses two separate common-cathode video mixers. Same heading markers are inserted into both mixers front input 2, while other inputs handle independent markers.-NBS, Hand-book Preferred Circuits Navy Aeronautical Electronic Equipment, Vol.1, Electron Tube Circuits, 1963, p N4-3.
