TELEPRINIER_CHARACTER_COUNTER

Published:2009/7/23 22:27:00 Author:Jessie | From:SeekIC

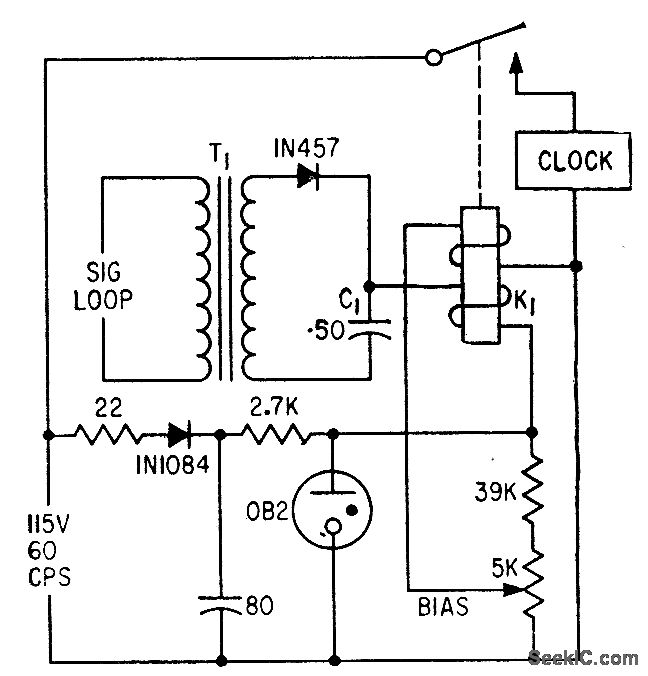

Simple circuit switches on timer dock only when teleprinter keying impulses are present, to give indication of traffic volume, low, and routing.-R. E. Pafenberg, Character Counter Aids Teletypewriter Routing, Electronics, 34:17, p 120-121.
